Transformers

A transformer is an electrical device that transfers electricity from one circuit to another with change in voltage, current, phase or other electric characteristics. Transfer of electricity from one circuit to another is purely by magnetic coupling, without relative motion of any part. Transformers are essential in high voltage power transmission providing an economical means of transmitting power over large distances.

Types of Transformers

Distribution transformer: It is an electrical transformer that is used to carry electrical energy from a primary distribution circuit to a secondary distribution circuit. These transformers minimize the voltage supply of the primary circuit to the amount of voltage desired by the consumer. The amount of this voltage keeps on changing and can be different for commercial consumers, residential consumers and light industry consumers.

Distribution transformer ranges from 5 KVA single phase to 2500 KVA three phase. These can work at different voltage and frequency levels according to the standards prevailing in the various countries.

Salient Features:

Distribution transformers can be single-phase or three-phase.

The three-phase transformers with a pad installed on them are used with an underground primary circuit, whereas three single-phase pole type transformers are used for overhead services.

Power Transformer

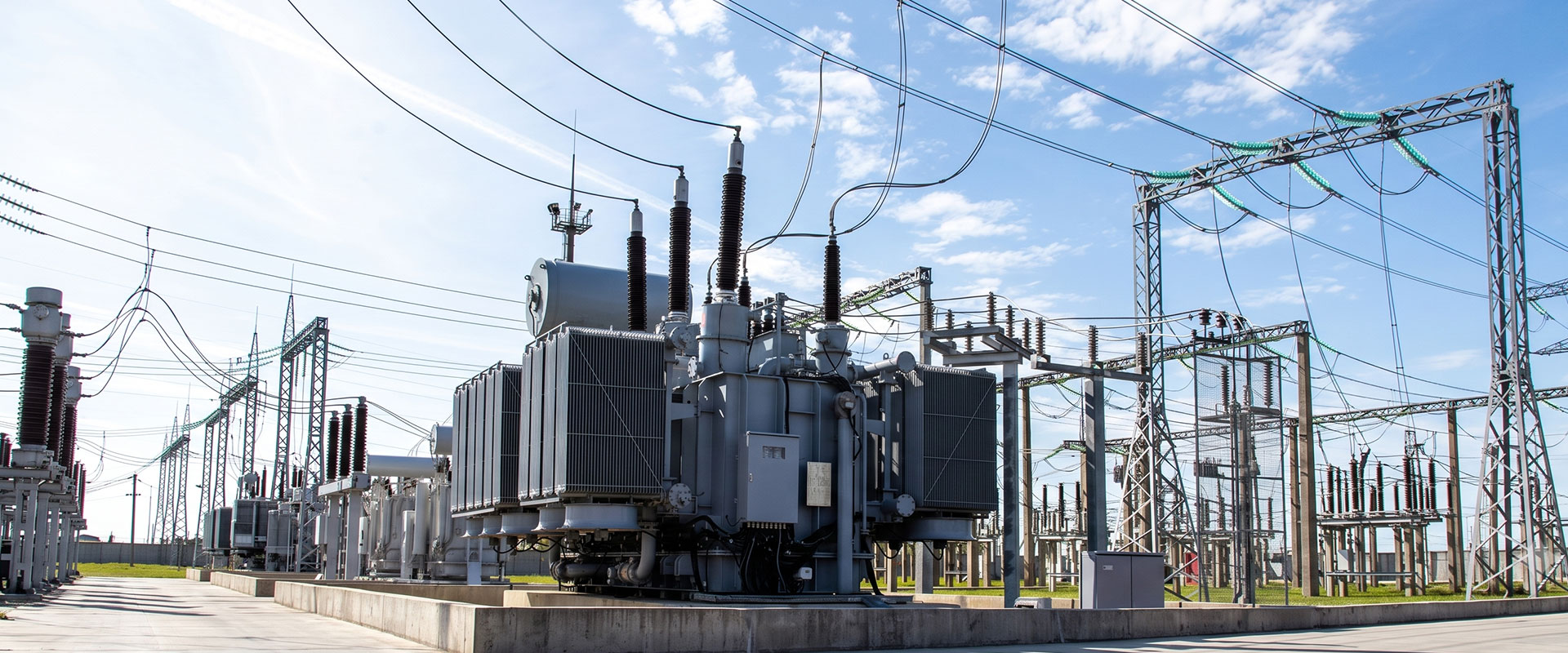

A transformer is a passive electrical device that transfers energy from one AC system to another. It is designed to change voltage from one level to another by means of magnetic induction. The power transformers are capable of accepting energy at one voltage and delivering it at another voltage. This allows electrical energy to be generated at relatively low voltages and transmitted at high voltages and low currents. This minimizes line losses and becomes fit for using at safe voltages. We supply power transformers up to 15 MVA capacity with maximum voltage level of 66 KV for the frequency level according to the standards.

Furnace Transformer

We supply an array of furnace transformers for all types of machineries. All our products are custom designed and confirm with the customer specifications. Our range of oil furnace transformers come with furnace duty design that have necessary arrangements to suppress harmonics.

Functions:

To provide suitable voltage to match heating element requirements.

High frequency transformers can be used for induction heating applications.

Specifications:

Multiple ratio outputs for changing resistance loads.

5 to 20,000 KVA.

Single phase, three phase, three or two phase.

Air, water, forced air or oil cooled.

Currents to 20,000 amp.

Heat Treatment Transformers

We are engaged in supplying a superior range of Heat-treatment Transformers. These Transformers are available with variable multi tapping voltage along with high current transformers and for heat treatment applications. Moreover, our range of Heat-treatment Transformers are highly appreciated for high performance, durability and availability of different voltage options.

Equipments Transformers

These are special purpose transformers that are incorporated along with the equipment. Further, these Transformers has varied specifications, for specific equipments with different voltage standards as per geographic regions.

Custom Transformers

We offer a range of transformers like power transmission transformers, 3 phase transformers, voltage converter power transformers, etc. for varied type of industries. Industries can use it for supplying power from an alternating current power grid to equipment, which uses a different voltage or electric power transmission over long distances. We also offer customized solutions as per specific requirements.
